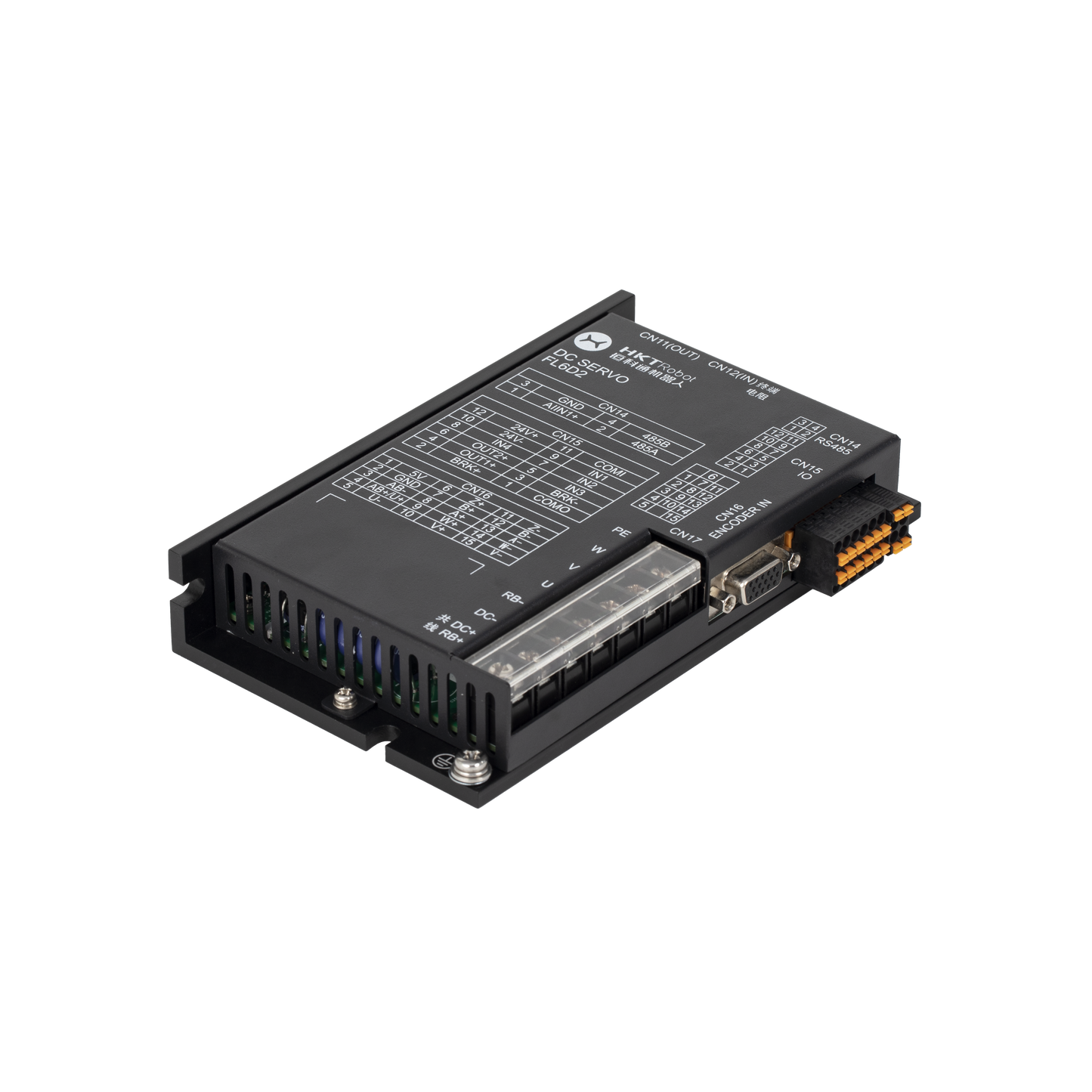

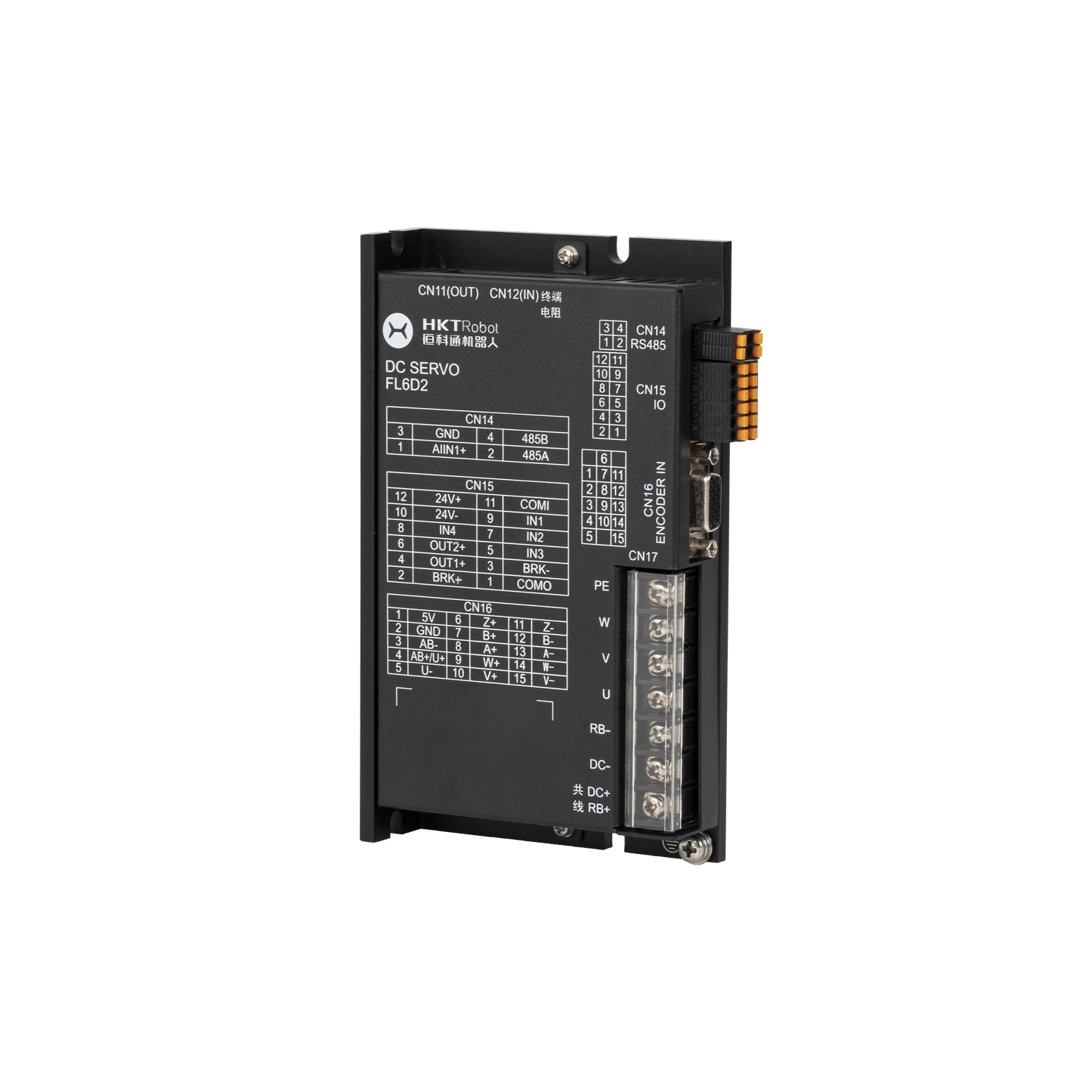

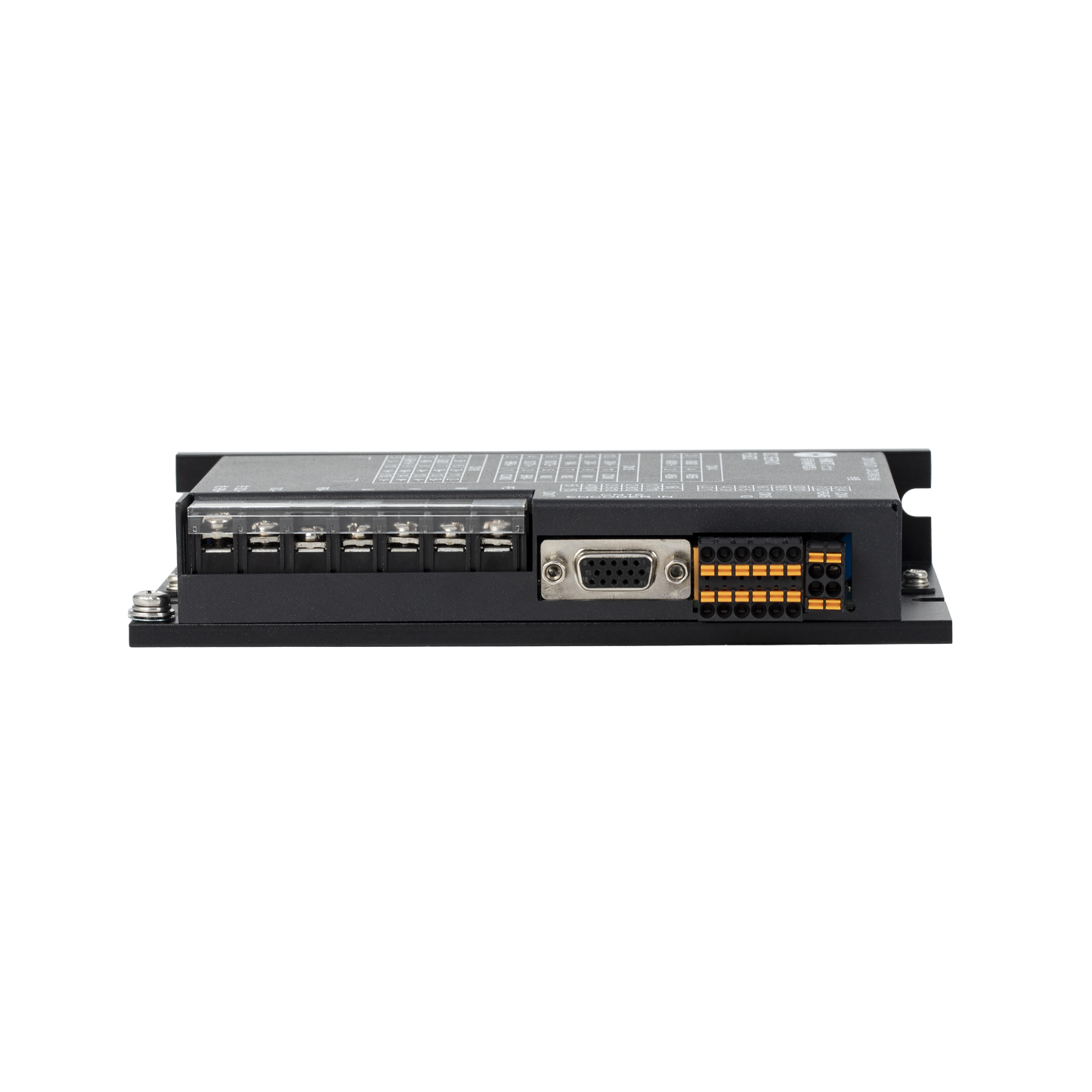

1000W AGV Low Voltage Servo Driver Motor Controller Support Absolute and Incremental Encoder FL6D2Z1-A00

Product Description:

This Low Voltage Servo Driver offers precision control for a wide range of motion control systems. This product is designed to operate with a supply voltage of 24-60VDC, and has a rated current of 11A and a peak current of 33A. It supports two types of encoders – absolute and incremental encoder – for accurate position control. Moreover, it is equipped with communication protocols such as CANopen Modbus/RS485 for efficient data transmission.

Features:

1.Users have control over the many customizable functions the input functions provide such as driver enable, reset, work mode control, command reverse, emergency stop, and internal speed range control. Output functions can also be tailored and include driver ready, alarm, motor in place, motor zero speed, motor brake, motor speed arrived, etc.

2.Two modes for control are supported in addition to pulse and analog control– Modbus/RS485 and CANopen communication control.

3.Customers can select between absolute and incremental encoders for a greater diversity of applications.

Technical Parameters:

Applications:

Logistics robots: automatic navigation freight robots, shuttle cars, cleaning robots, automatic parking robots, etc.

Logistics equipment: automatic sorting line, three-dimensional warehouse, etc

Medical Device industry: Small systems
