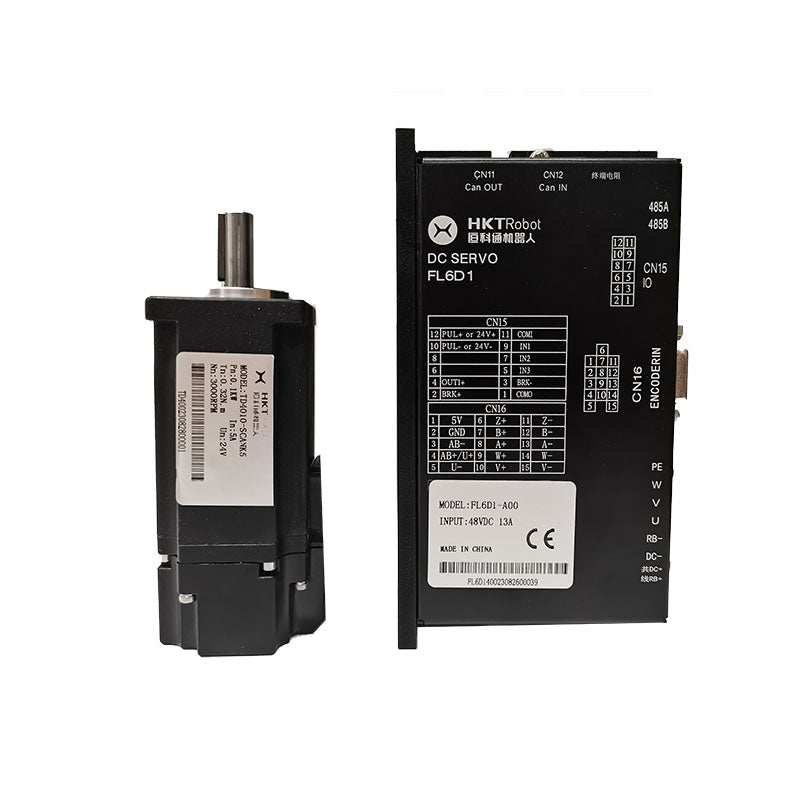

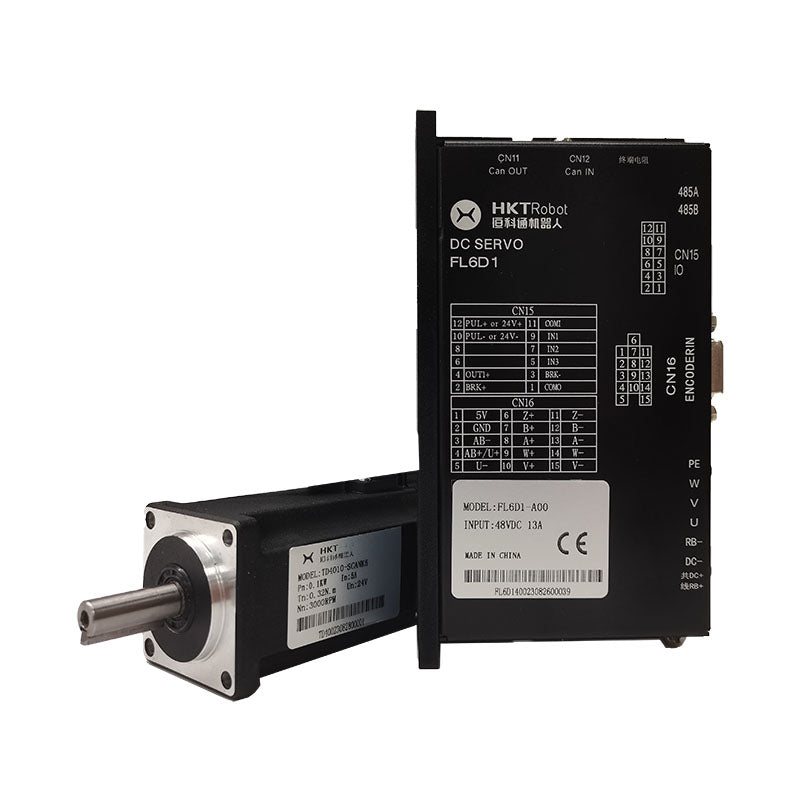

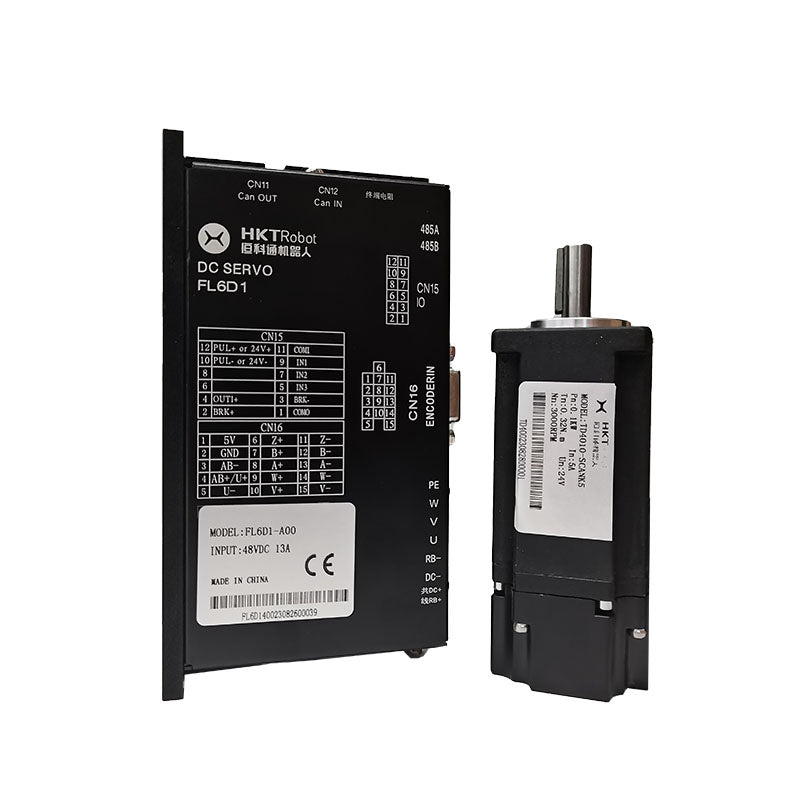

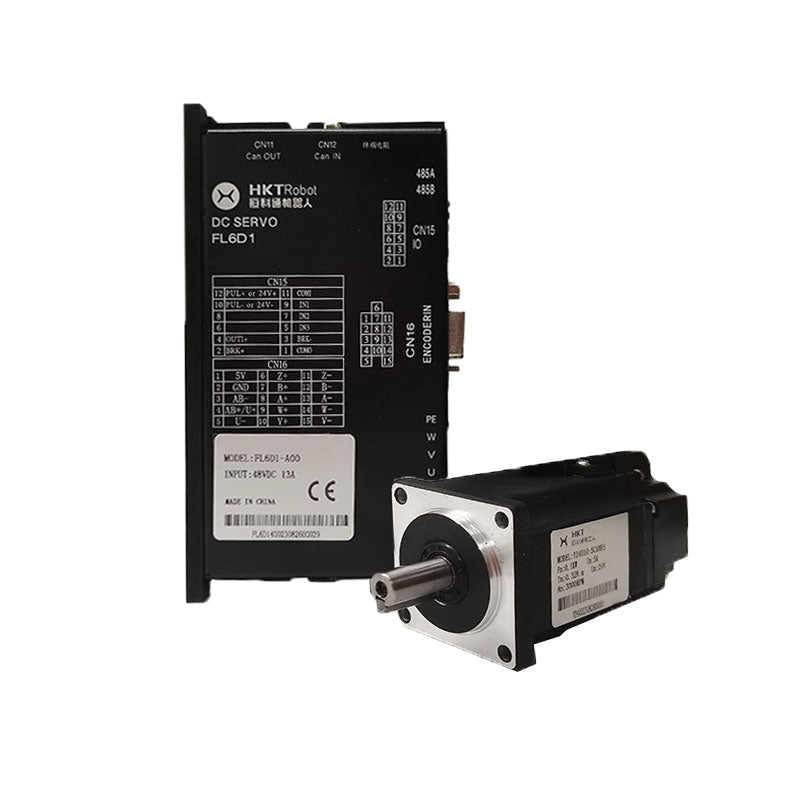

400W BLDC Servo Driver Hybrid Intelligent Servo Motor 3000 RPM

400W BLDC Servo Driver Hybrid Intelligent Servo Motor 3000 RPM

Voltage: 24-60V

Protocol: RS485

Rated Power: 400W

Rated Speed: 3000 RPM

Maximum Speed: 3600 RPM

Regular price $222.00 SGD
Regular price Sale price $222.00 SGD
Sale Sold out
Shipping calculated at checkout.
Function
Encoder Type

Product Description:

The comprehensive servo motor drive kit comprises both the low-voltage servo motor and its corresponding low-voltage servo driver, complete with all the essential accessories and components required for a straightforward and trouble-free installation and operation.

AGV servo motors are exceptionally suitable for AGV robots due to their inherent precision, agility, and versatility. These qualities are paramount for ensuring effective navigation, maneuverability, and task execution in intricate and constantly evolving environments.

AGV servo drives deliver the exacting and dynamic motion control needed for navigating and accomplishing tasks in intricate environments. With their closed-loop control, energy-efficient operation, safety enhancements, and compatibility, they assume a pivotal role as indispensable components in ensuring the effective functioning of AGV systems.

Servo Driver Specification:

Part Number: FL6D1Z1-A00

Communication Method: Modbus CANopen

Encoder: Absolute and incremental encoder

Supply Voltage: DC 24-60V

Rated power: 400W

Rated Current: 11A

Peak Current: 33A

Support pules control

Servo Motor Specification:

Part Number: TD6040-SCABK5

Encoder: Absolute Value

Power: 400W

Flange Size: 60*60mm

Number of Pole Pairs: 5 poles

Rated Torque: 1.27Nm

Rated Current: 11A

Rated Speed: 3000RPM
