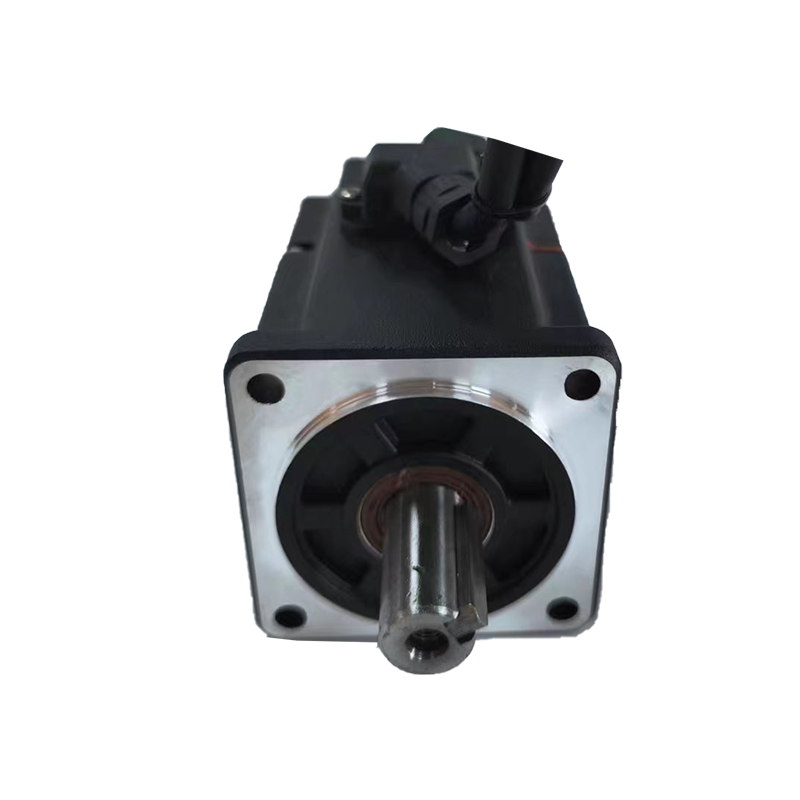

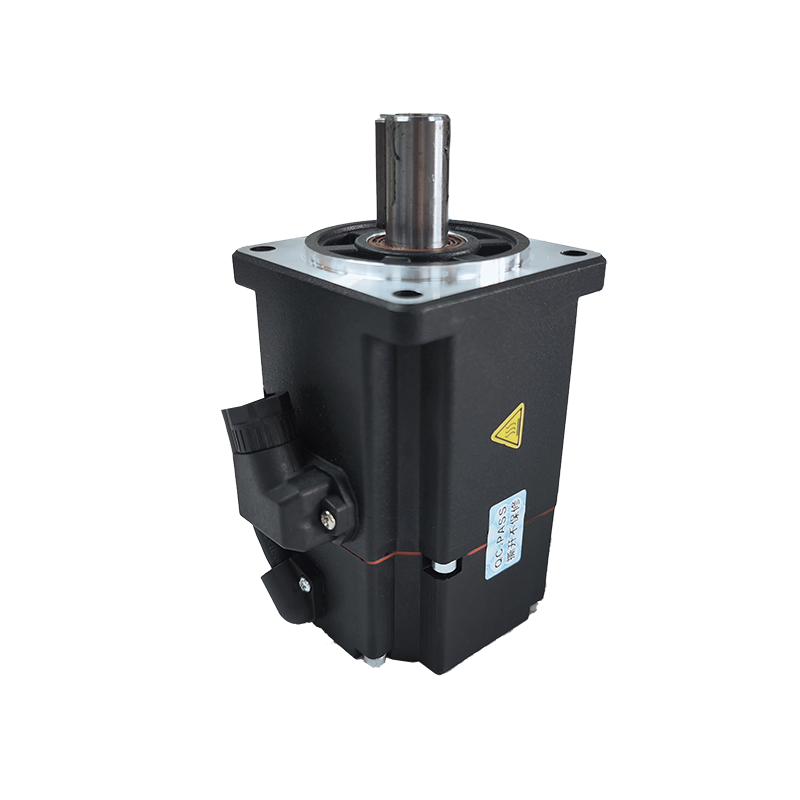

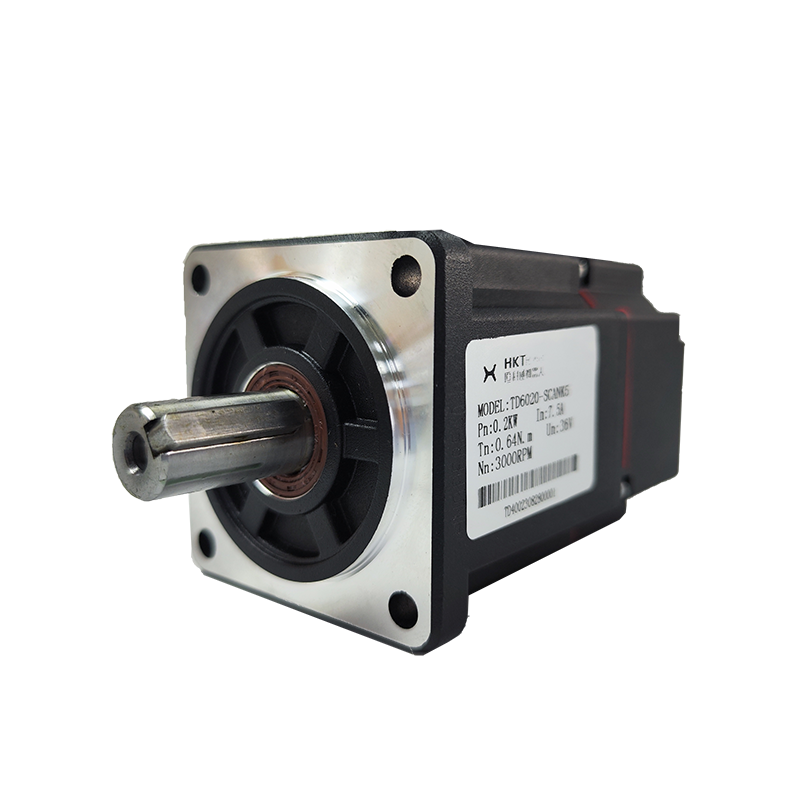

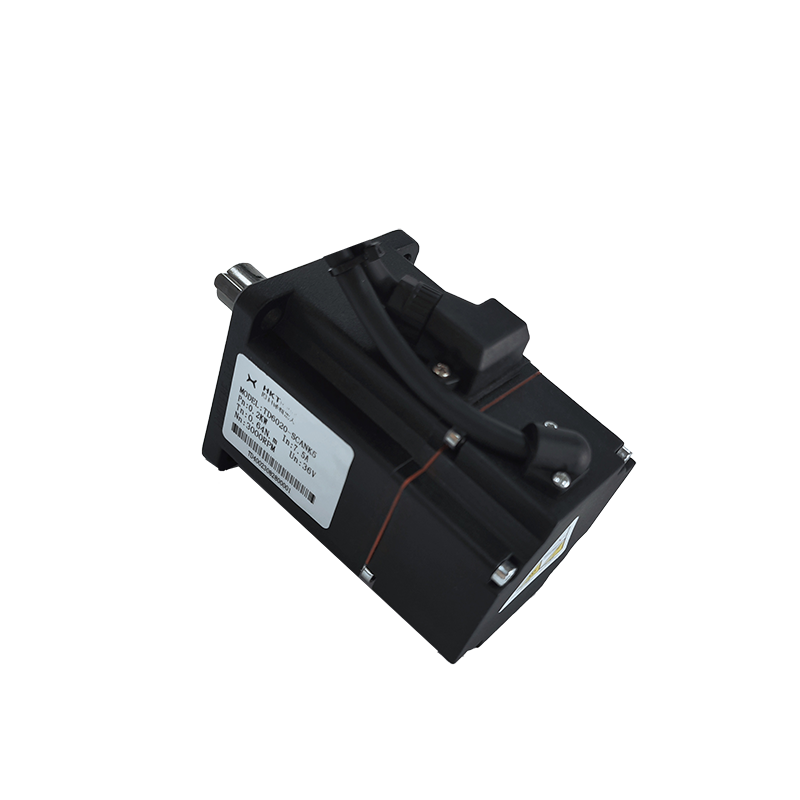

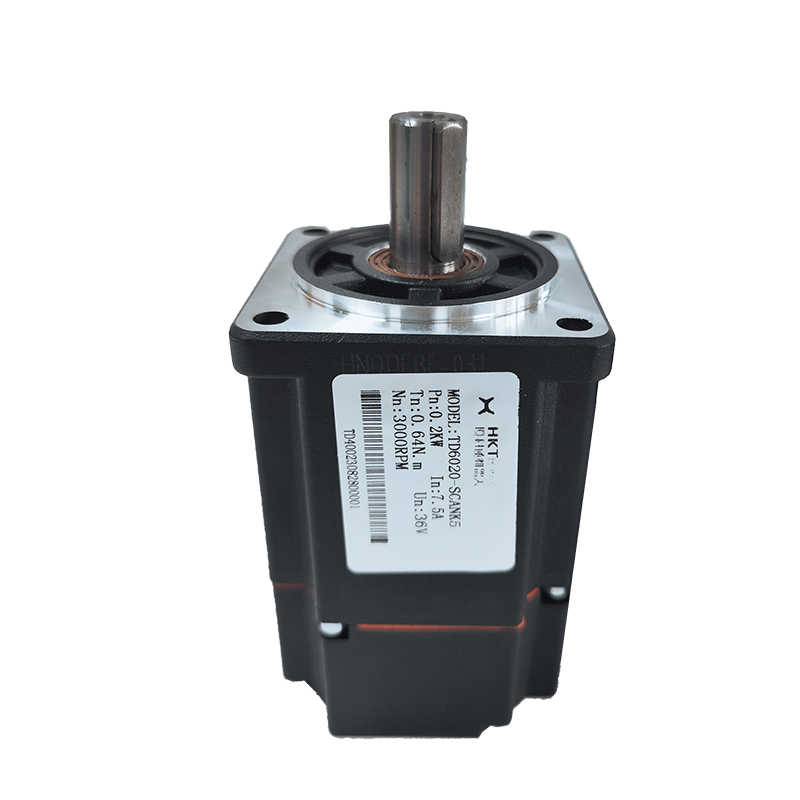

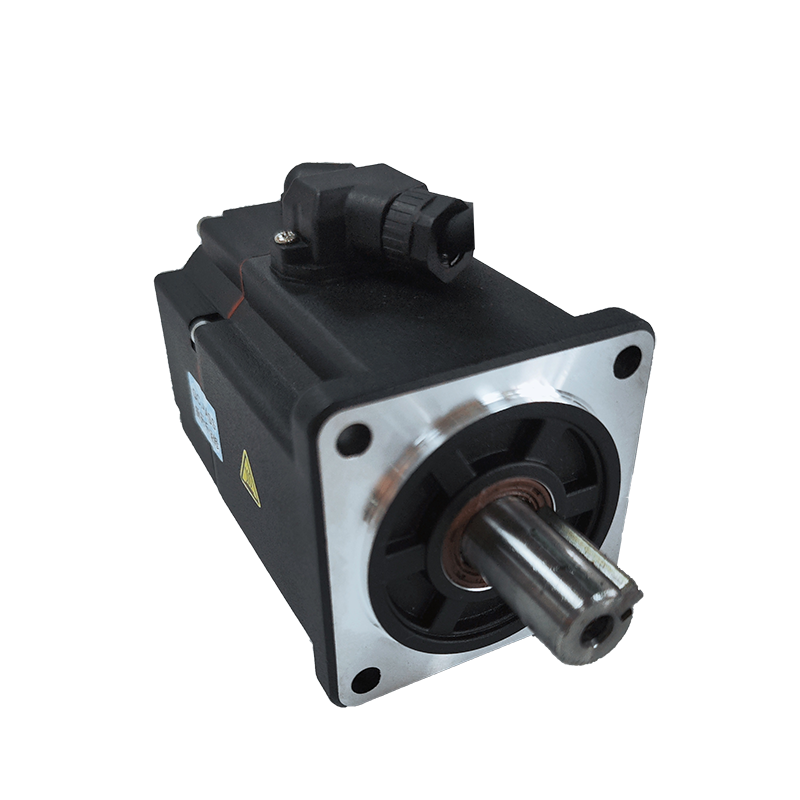

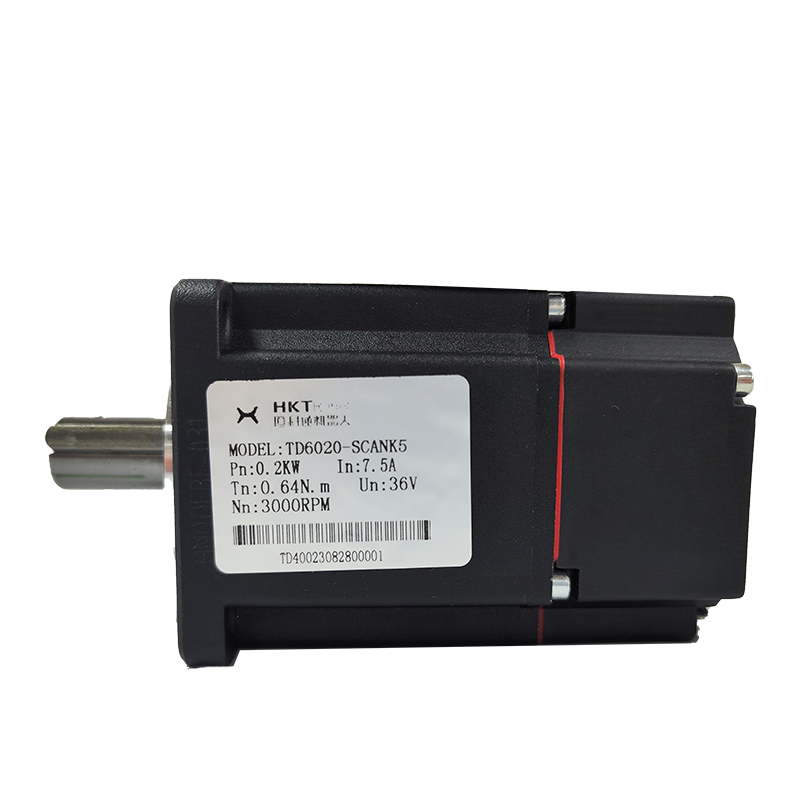

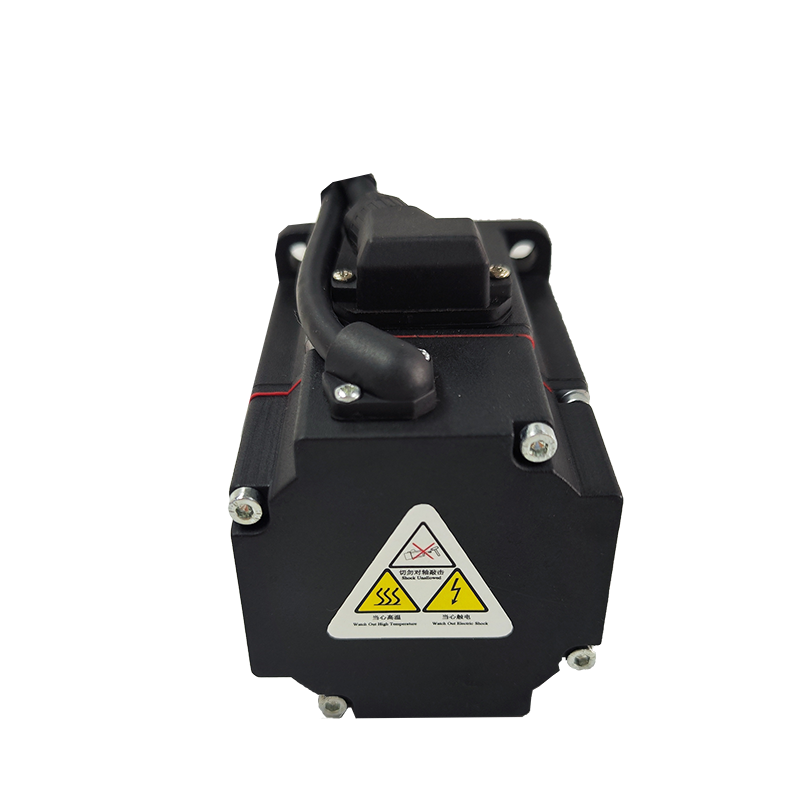

200W DC 24V AGV Robot Servo Motor Brushless Servo Motor

200W DC 24V AGV Robot Servo Motor Brushless Servo Motor

Certificate

Voltage: 24V

Protocol: RS485

Rated Power: 200W

Rated Speed: 3000 RPM

Maximum Speed: 3600 RPM

Regular price $151.00 SGD
Regular price Sale price $151.00 SGD
Sale Sold out
Shipping calculated at checkout.
Function
Encoder Type

200W DC 48V AGV Drive Motor with Absolute Value Encoder

Product Description:

AGV Drive Motor is a DC servo motor specially developed for AGV applications. It features a rated current of 6.5A, a flange size of 60*60mm, a rated speed of 3000rpm, an absolute value encoder and a rated torque of 0.64Nm. It is the perfect choice for AGV applications, thanks to its reliable performance, high efficiency and excellent stability. It is designed to meet the most demanding requirements of AGV applications, providing a reliable driving force for AGV systems. AGV Motor Drive powered by the AGV Drive Motor is the ideal solution for your AGV project.

Features:

1.Low voltage servo motors offer several advantages and great features that make them ideal for AGV/AMR robot applications.

2.The motors are equipped with a professional customized encoder from HKT, which enables precise position and speed control.

3.Additionally,  high-quality components ensure reliable operation over long duty cycles with minimal maintenance requirements.

Technical Parameters:

Product name AGV Drive Motor
Voltage DC 24V
Rated power 200W
Encoder Absolute Value
Flange size 60mm*60mm
Rated Current 6.5A
Number of Pole Pairs 5 Poles
Rated Speed 3000rpm

Applications:

Within the realm of warehouse logistics, the AGV Motor emerges as an invaluable asset, pivotal in ensuring the flawless and dependable movement of goods. This robust piece of machinery goes above and beyond, not only by optimizing the storage and retrieval processes but also by significantly enhancing the overall operational efficiency of the entire warehouse.
