750W 2.38N⋅m Low Voltage Servo Motor Driver Inverter Kit 3000RPM

750W 2.38N⋅m Low Voltage Servo Motor Driver Inverter Kit 3000RPM

Voltage: 24-60V

Protocol: RS485

Rated Power: 750W

Rated Speed: 3000 RPM

Maximum Speed: 3600 RPM

Regular price $0.00 SGD
Regular price Sale price $0.00 SGD
Sale Sold out
Shipping calculated at checkout.
Function
Encoder Type
Motor

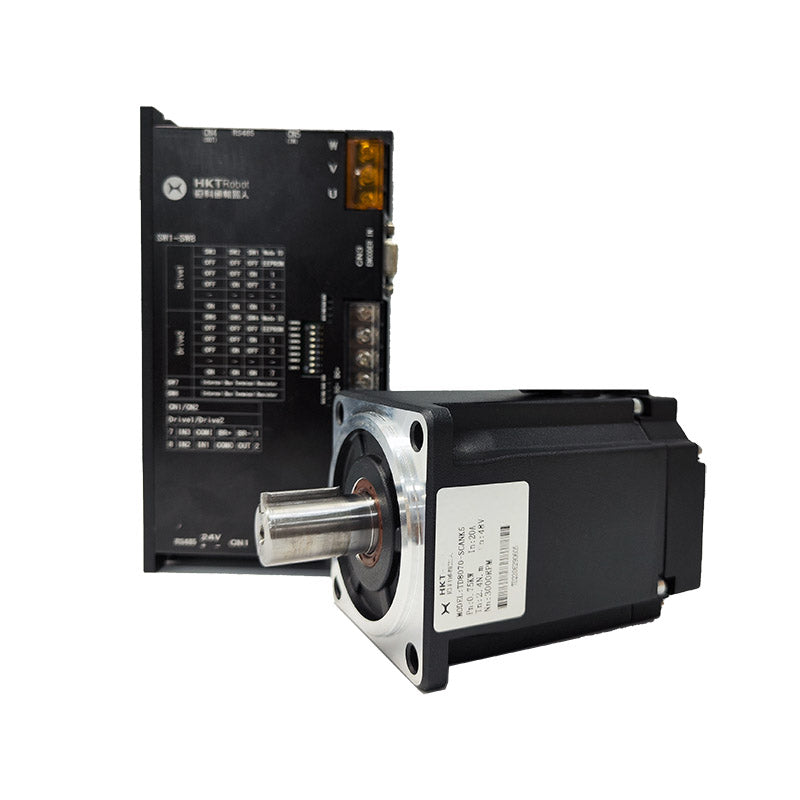

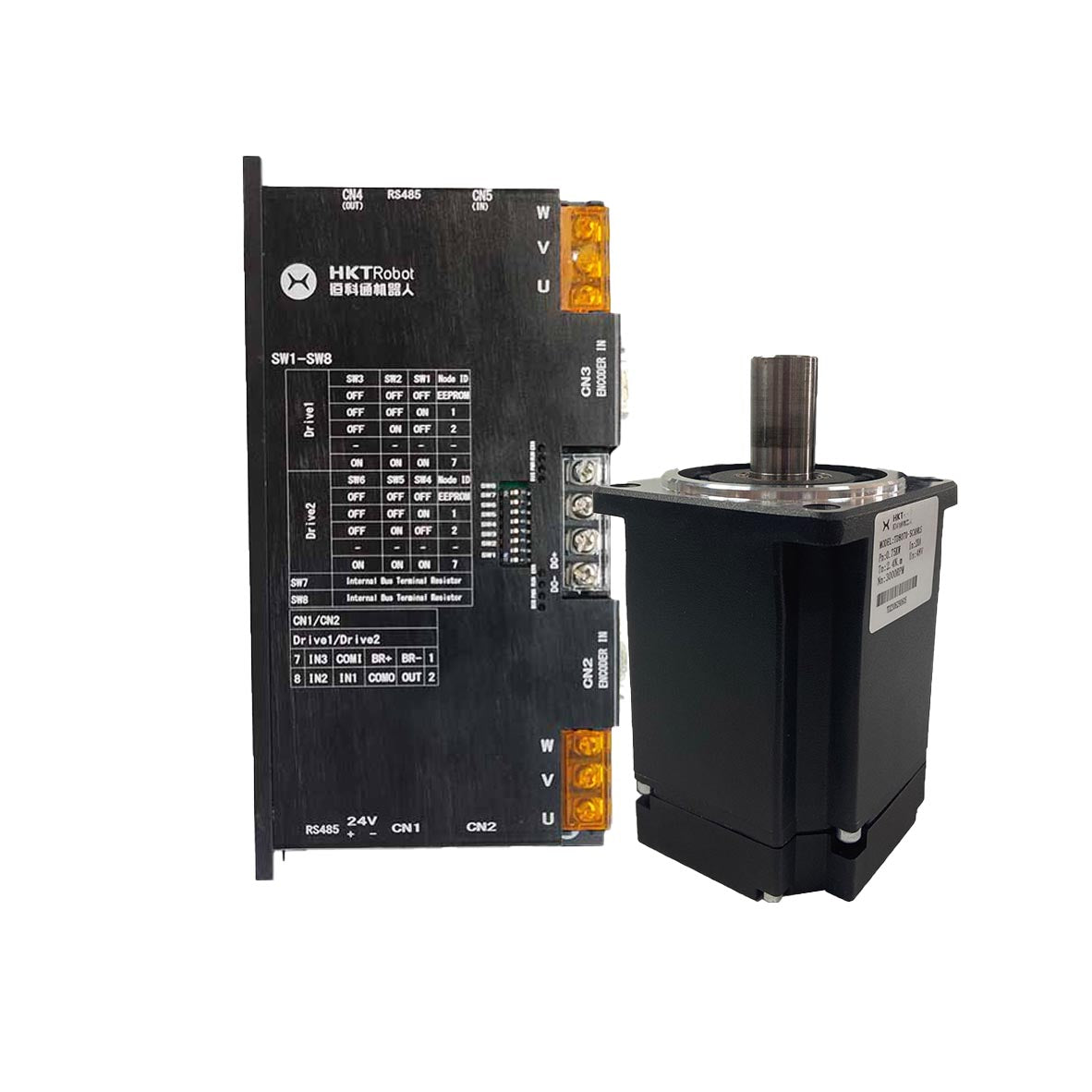

750W DC Servo Motor and Servo Driver Kit 3000rpm without Brake

Product Description:

Our comprehensive servo motor drive kit offers a seamless setup and operation experience. It has all the essential components and accessories, encompassing both the low-voltage servo motor and its corresponding low-voltage servo driver.

AGV servo motors are the most appropriate for AGV robots. They are very precise, responsive and adaptable to enable navigation, maneuvering and task execution in varied and often complex environments. Their motion control capability is an important factor for the success of AGV systems.

AGV servo drivers are ideal for AGV robots. With closed-loop control, energy efficiency, safety features and compatibility, these provide the dynamic motion control that is needed for navigation and task execution in complex environments. They are vital for the successful operation of AGV systems.

Servo Driver Specification:

Part Number:FL6D2Z2-A00
Communication Method: Modbus CANopen
Encoder: Absolute and incremental encoder
Supply Voltage: DC 24-60V
Rated power:750W
Rated Current:32A
Peak Current:64A
Support pules control​

Servo Motor Specification:

Part Number:TD8075-SCANK5
Encoder: Absolute Value
Power:750W
Flange Size:80*80mm
Number of Pole Pairs:5 poles
Rated Torque:2.38Nm
Rated Current:20A
Rated Speed:3000rpm
